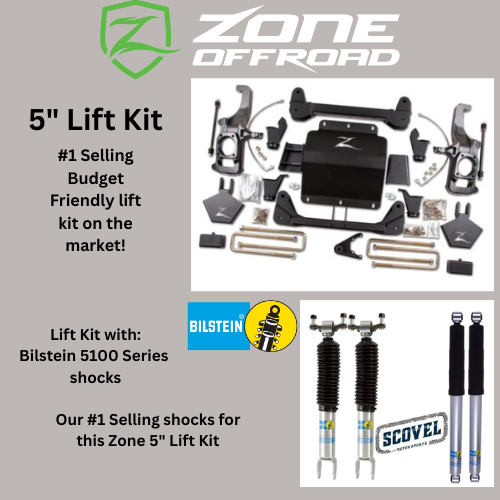

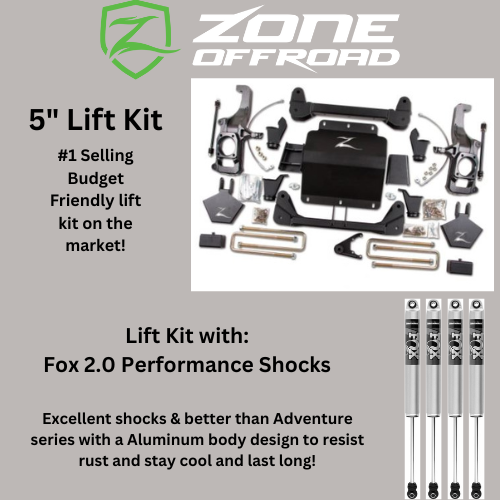

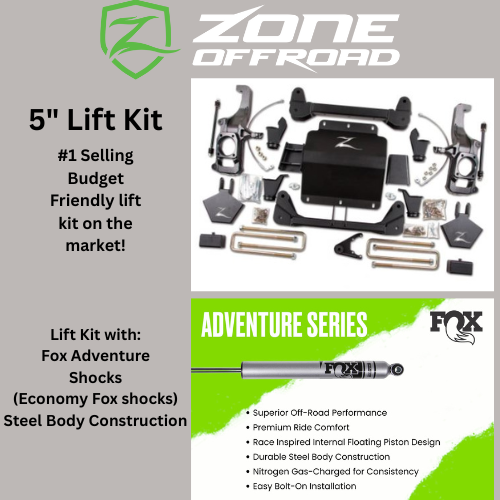

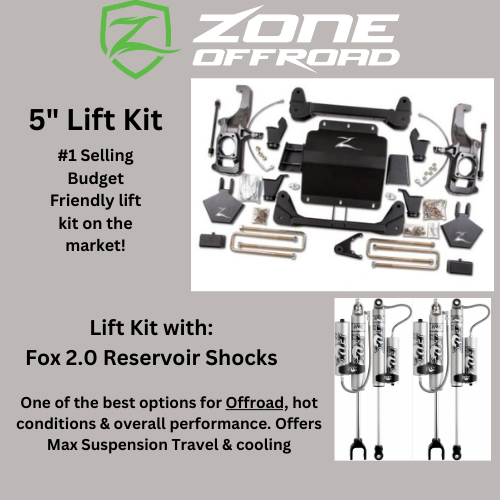

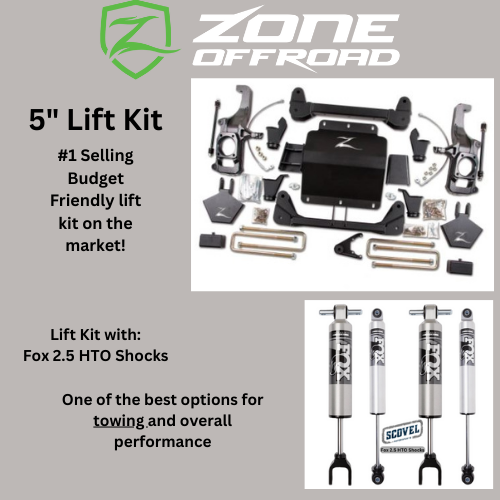

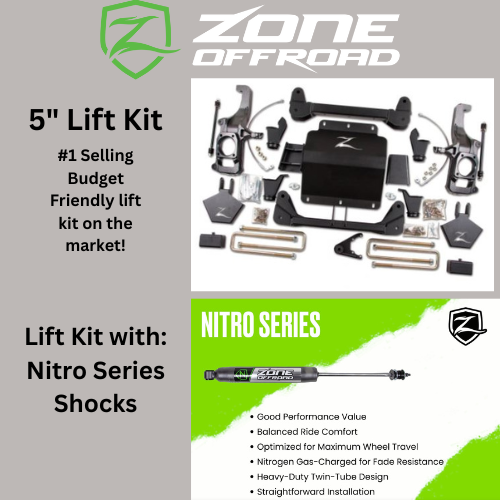

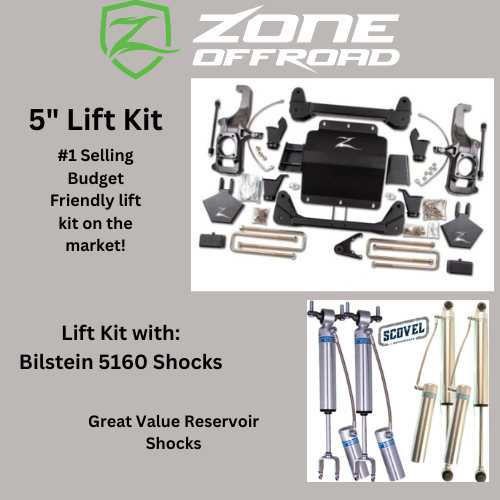

ZONE OFFROAD 5" TORSION BAR DROP LIFT KIT (2011-2019 GM 2500/3500HD)

• Heavy-duty differential skid slate improves offroad protection.
• High-strength, 1/4" steel construction crossmembers corrects lower control arm geometry.
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
• No differential trimming required.
• Rear lift block and longer U-bolts for easy installation and level stance.

• 2015-2018 Models Only: 20" wheels can not be reinstalled due to GM changing the wheel thickness. The ID of the 20" wheels are smaller on 2015-2018 models.
• Fitment: WILL fit RWD models, however the front differential related parts in kit will not be used.
• Frame bracket modifications required for installation.
• Mod's Required: Modifications required for installation. See installation instructions for more information.
• Optional steering stabilizer (PN# 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
• Stock 17" or 18" Wheels cannot be re-installed.
• Stock 20" wheels cannot be reinstalled on 2015-2018 models.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• Will fit RWD models. The front differential related parts will not be used.
• With a 20" Wheel, 5"-6" backspacing is recommended.
• In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.
