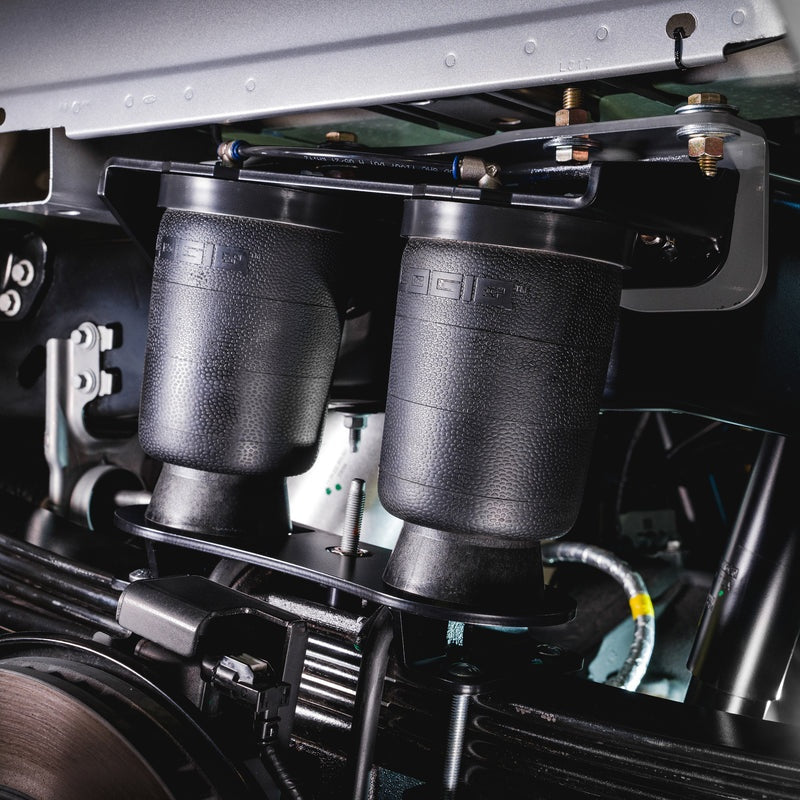

Unlock your Super Duty's fullest potential with a LOGIQ Air Spring Kit. The leaf assist Air Spring Kit is proven amongst the hardest working trucks to not only improve load support, but drastically increase in-cab comfort when towing and hauling heavy loads. This kit is simple to install as it mounts between the frame rail and leaf pack of your vehicle. If your truck has factory overload springs, The LOGIQ Air Spring Kit will replace them and increase your loaded ride comfort even more while also improving upon lifting capacity and load support. Our Air Spring Kits come pre-assembled, meaning no drilling, no welding an no guesswork is needed to improve your ride immediately.
While most factory and aftermarket solutions compensate for heavy loads by solely increasing spring rate or adding more leaf packs, LOGIQ solves load leveling by using dual rolling sleeve air springs that are tuned to match the ride frequency of the front suspension, making for the smoothest ride possible in these trucks. Whether you tow heavy daily, or just take the toy hauler out occasionally, LOGIQ will increase your experience drastically.
WARNING - Never exceed manufacturer's Maximum Payload or GVWR
• Fits trucks with or without factory overload springs. • Does not fit cab & chassis models. • Not compatible with most aftermarket leaf springs. • Dual Rear Wheel (Dually) trucks require a DRW Hardware Kit - PN: 88-23XXX-DRW

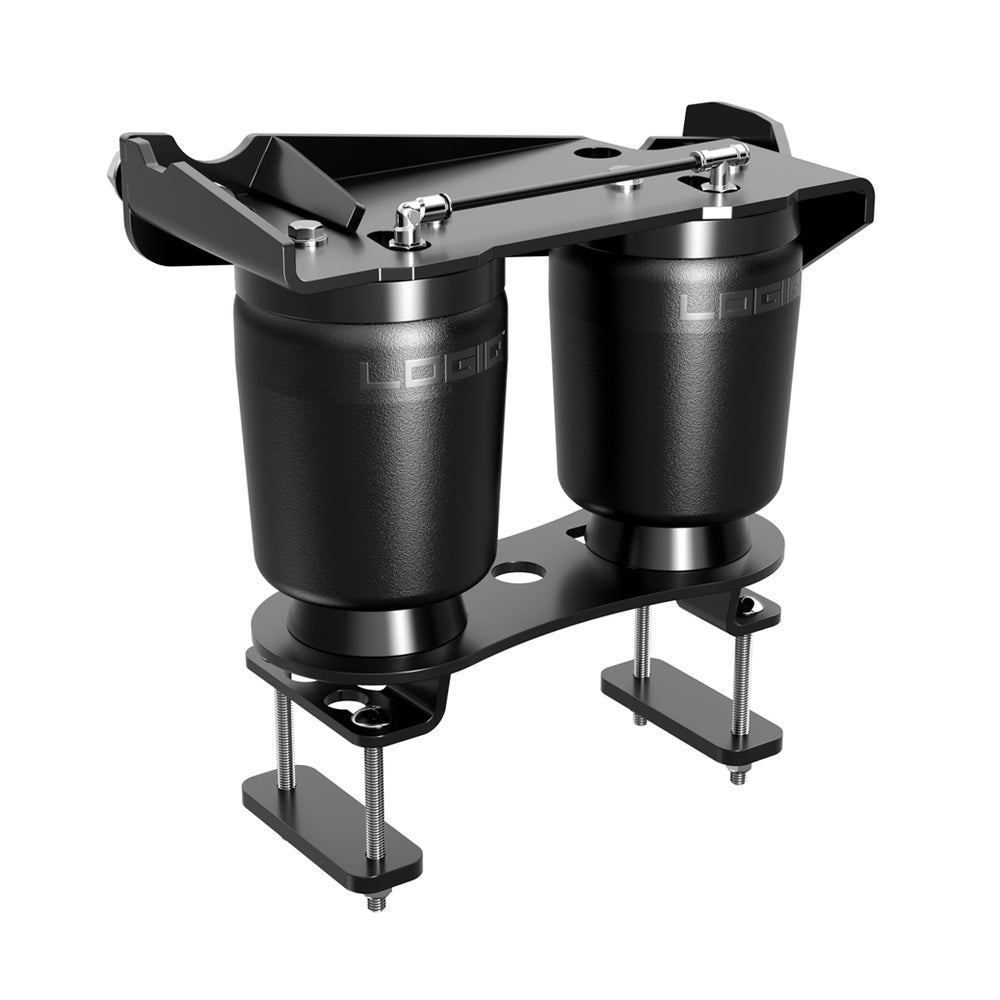

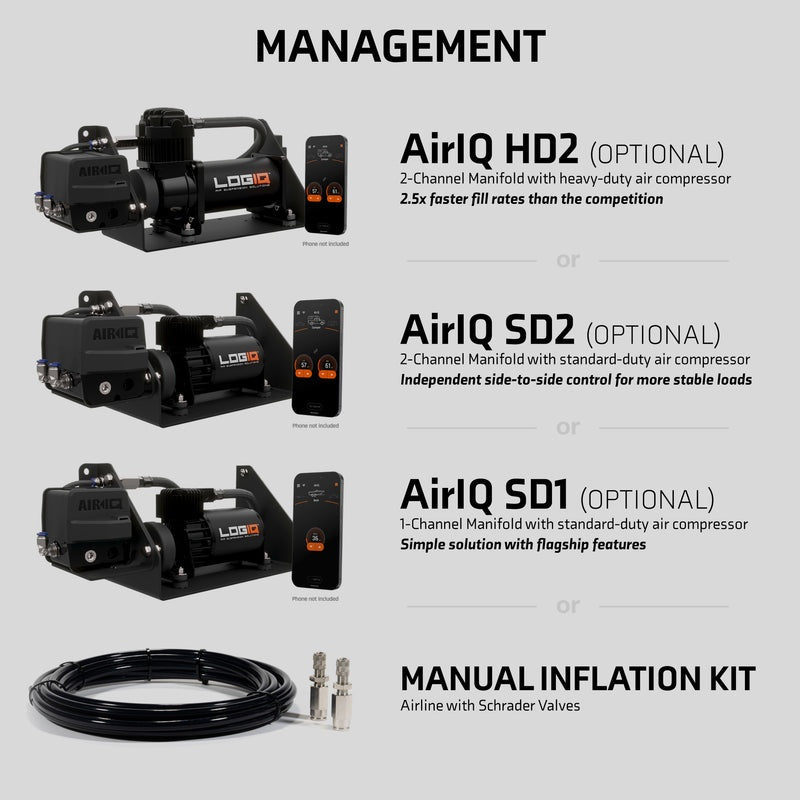

(1) Driver Side Air Spring Assembly (1) Passenger Side Air Spring Assembly (1) Driver Side Height Sensor Relocation Bracket (lower) (1) Passenger Side Height Sensor Relocation Bracket (lower) (1) Hardware Kit (1) Overload Spring Removal Hardware Kit (1) Manual Inflation Kit
Air Spring Location: Leaf Spring Mounted Outboard Frame Rails Air Spring Quantity: 4 Load Capacity: 6,400 lbs @ 150 psi Maximum Pressure: 150 psi Minimum Pressure: 5 psi
