CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System
CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System
CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System
CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System
CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System
  • Load image into Gallery viewer, CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System
  • Load image into Gallery viewer, CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System
  • Load image into Gallery viewer, CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System
  • Load image into Gallery viewer, CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System
  • Load image into Gallery viewer, CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System

CST 20-24+ Chevy / GMC HD 2500 / 3500* 4wd 4″ Stage 4 Suspension System

Regular price
$4,189.55
Sale price
$4,189.55
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

CSK-G23-4 Stage 4 Suspension System includes the complete lift kit with upper control arms , front and rear 2.0 DIRT Series shocks.



CST is proud to announce the all new 4″ STL Suspension System for the 20-24+ Chevy & GMC HD Trucks. This new kit will provide superior performance on or off road. Sub frames are designed to give you the most ground clearance while protecting vital front suspension components.  All of CST products are precision fabricated in house to provide strength and durability. CST Performance Suspension products are designed and manufactured in the USA!



Description

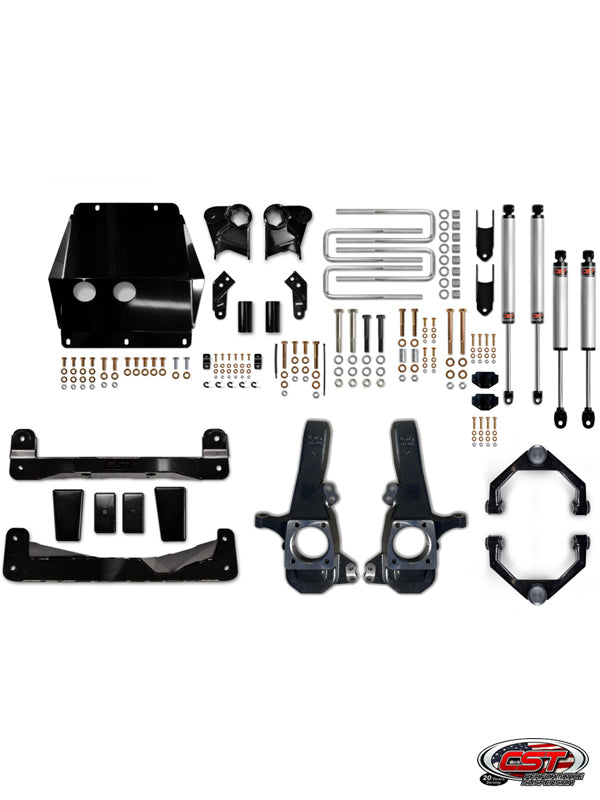

CSK-G23-4 4″ STL Stage 3 Suspension Includes the following parts:

CSS-C3-23-B1     Front & Rear Sub Frames, Diff Drops, & Lift Blocks

CSS-C3-23-B2     Spindles

CSS-C3-23-B3     Skid plate, Torsion Brackets, Torsion Sleeves, Hardware, Etc.

CSS-C2-20            Ball Joint Upper Control Arm

CSS-C33-4            2.0 Front Shock Mount

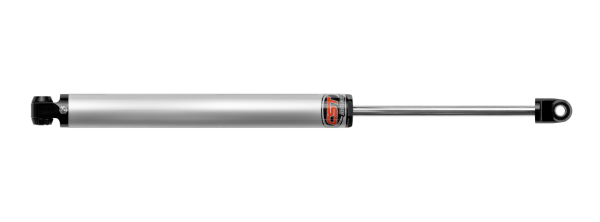

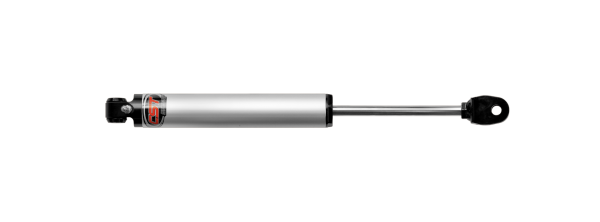

CSA-5534              DIRT Series 2.0 Emulsion Front Shock

CSA-5533              DIRT Series 2.0 Emulsion Rear Shock



Options for the 4″ Kit:

CSA-6534    DIRT Series 2.0 Remote Reservoir Front Shock

CSA-6533      DIRT Series 2.0 Remote Reservoir Rear Shock

CSS-C33-4     2.0 Single Shock Mounting Kit

CSA-7523     PRO Series Remote Reservoir 14 Way Compression Adjustable Front Shocks

CSA-7524     PRO Series Piggyback 14 Way Compression Adjustable Rear Shocks

CSS-C33-9     2.5 Single Shock Mounting Kit

CSS-C29-25    Aluminum Front Skid Plate

CSS-C24-18    Heavy Duty Tie Rod Ends

*3500 Model Trucks Require Longer U-Bolt for Factory Overload CSU-C15-15HD*



4” S.T.L. Kit Feature

SUPERIOR CV& TIE ROD ANGLES

HIGH CLEARANCE, FULLY BOXED X-MEMBERS

KIT INCLUDES STEEL LOWER SKID PLATE TO PROTECT FRONT DIFF

STOCK TORSION LOCATION (STL) FOR MAXIMUM GROUND CLEARANCE

INCREASED TIRE CLEARANCE

ABILITY TO RE-USE O.E. SHOCKS (KIT INCLUDES FRONT SHOCK ADAPTERS)

GM STAILITRAK APPROVED

PARTS COVERED IN A HIGH-QUALITY GLOSS BLACK POWDER COAT FINISH

NO WELDING REQUIRED

CAST IRON KNUCKLES

CST SUPERIOR QUALITY FIT, FUNCTION AND APPEARANCE

IMPROVED HANDLING

ABILITY TO PUT BACK TO STOCK

MADE IN THE USA



Wheel & Tire Fitment

18″ Max Backspace 5.75″

20″ Max Backspace 6″

20×9 w/5″ Backspacing 37″ tire minor trimming

20×9 w/5″ Backspacing 35″ tire no trimming
