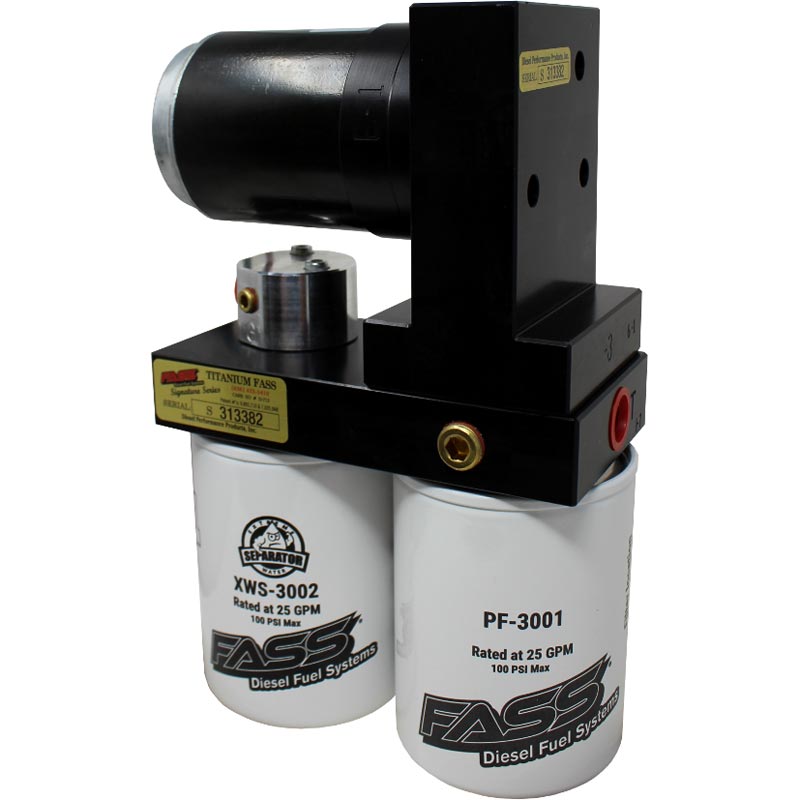

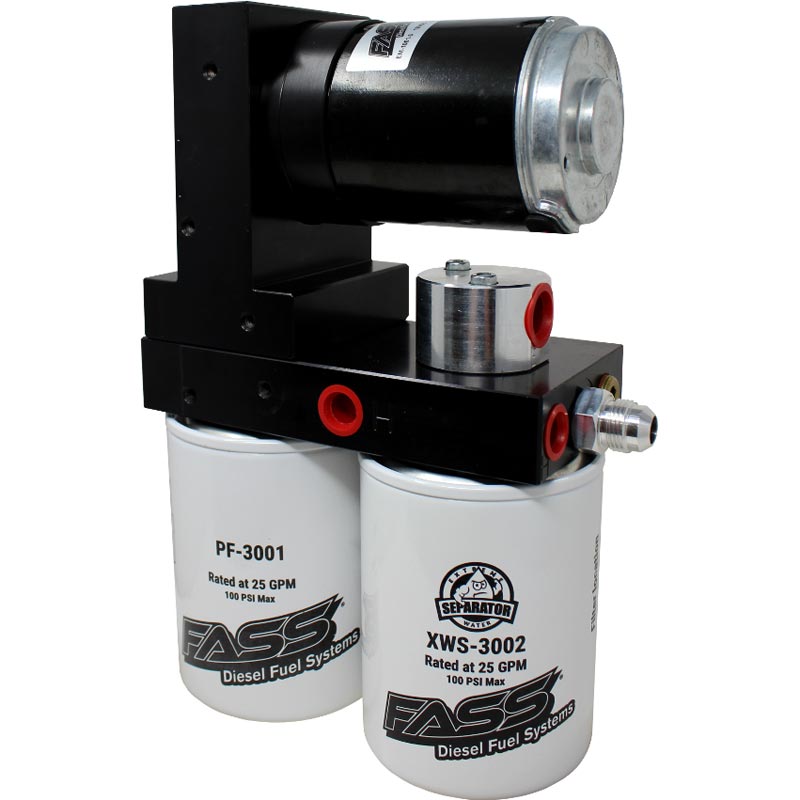

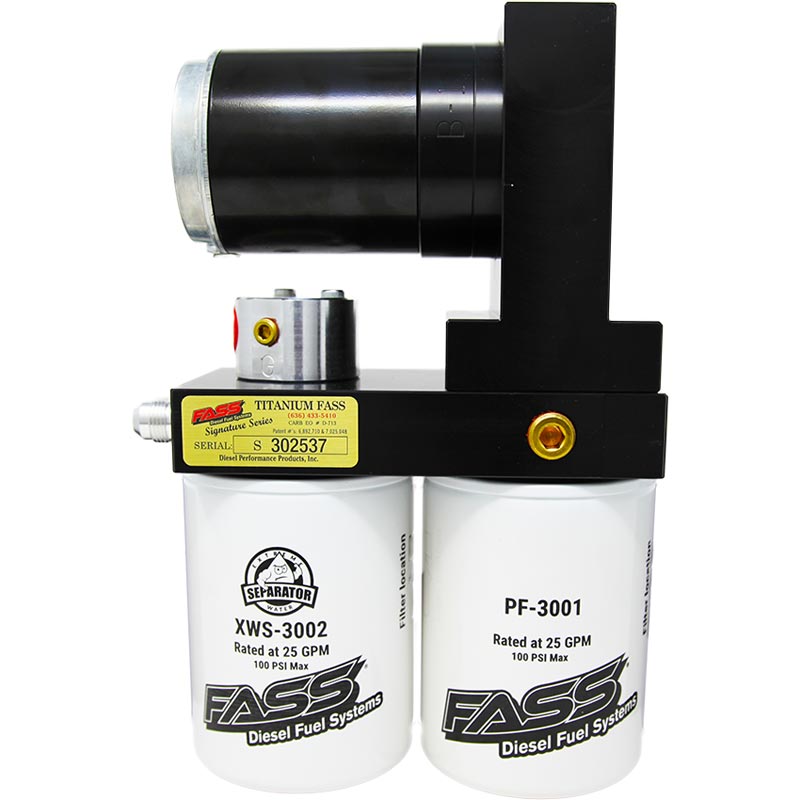

The FASS TS C11 165G Titanium Signature Series 95GPH Fuel System Fuel System with Whisper Technology is engineered to be the top performing, longest lasting and most reliable aftermarket filtration system on the market for your 2011-2014 GM 6.6L Duramax. Rated at 165 gallons per hour and backed by a limited lifetime warranty, the Titanium Signature Series offers advanced filtration that will help protect your Powerstroke fuel injection system, effectively extending the life of your Injection Pump and Injectors. These benefits include: improved filtration rating of 3 Microns, a built in water separation filter and FASS Fuel Systems patented air/vapor removal process. For 600HP-900HP applications

Titanium Signature Series
With over 2.5 years in the making, FASS has done extensive testing, research, and manufacturing on their Signature Series Fuel Systems. Featuring the FASS Whisper Technology specially designed to decrease pump noise, improve pump life, improve flow rate, and increase overall pump performance, the Signature Series provides you with the most reliable aftermarket fuel system in the industry.

Developed by the engineering team at FASS Fuel Systems to help reduce the noise created by aftermarket fuel and air separation systems. By using radius cuts, tighter tolerances on all gears and a high quality military Specd Coating over the aluminum base, FASS Fuel Systems is able to develop the quietest fuel air separation system on the market.

An advanced machining technique used to improve the flow of fuel through the pump by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and also to prevent stagnant fuel pockets from forming within the corner of a 90 degree bend.  FASS Titanium Signature Series Fuel Pumps are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90 degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine and returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is constantly being moved and cleaned. This guarantees that your truck always has the freshest and cleanest fuel possible.

Old mounting styles required drilling or welding when mounting your pump. This has been simplified with the FASS bolt on brackets that utilize your factory bed bolt that secures your truck bed to the frame. Mounting the Titanium Signature Series Pump takes only minutes and all brackets are made from machined steel for durability, support and strength.

• 165GPH @ 8-10 PSI
• Whisper Technology
• 3 Micron Filtration Rating
• 30K Mile Filter Life Expectancy
• Increases Efficiency, Performance & Smoother Idle
• Optional Electric Heater & Fuel Pressure Gauge Port
• Protects & Extends The Life Of Your Fuel System & Injectors

VEHICLE APPLICATIONS

YEAR	MAKE	ENGINE
2011	Chevy	6.6L LML Duramax
2012	Chevy	6.6L LML Duramax
2013	Chevy	6.6L LML Duramax
2014	Chevy	6.6L LML Duramax
2011	GMC	6.6L LML Duramax
2012	GMC	6.6L LML Duramax
2013	GMC	6.6L LML Duramax
2014	GMC	6.6L LML Duramax

SPECIFICATIONS

• MFG. NumberTS C11 165G
• Manufacturer NameFASS
• Shipping Weight20.00 lb.
• Shipping Length14 in.
• Shipping Width20 in.

• Shipping Height10 in.
• Fuel TypeDiesel
• WarrantyYes
• Warranty InfoLimited Lifetime
• Prop 65WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
