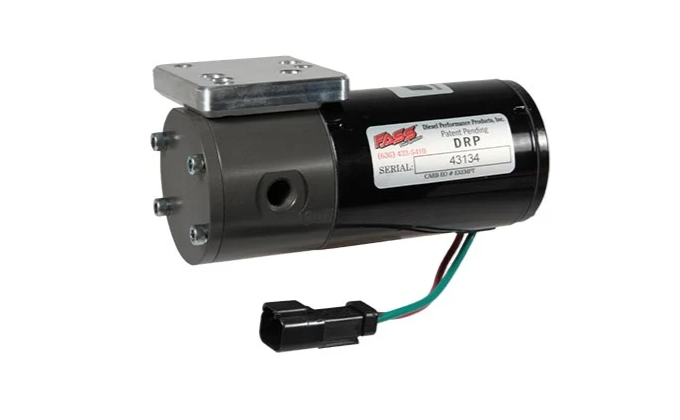

FASS DRP 02 DODGE REPLACEMENT FUEL PUMP
FACTORY FUEL PUMP FAILUREFailure of your factory lift pump is one of the most common component failures for the Dodge Cummins 24 Valve diesel engine. Both stock and modified engine suffer from this issue, with modified engine intensifying the weakness of the factory component, leading to premature failure. The main reasons behind this pumps inability to support the fuel demands for your Cummins engine is the fact that first its a smaller weak motor that is located near the engine. This requires the motor to pull fuel from the fuel tank located at the rear of the truck against the momentum of your moving pickup. As with all diesel lift pumps, motors are designed to be push fuel and when required to suck fuel over a long distance the added strain will overheat the motors, leading to a drop in fuel pressure. Low fuel pressures can cause a decrease in throttle response, fuel economy, horsepower numbers and even cause damage to your VP44 injection pump.
DRP RELOCATION BRACKETS (SOLD SEPARATELY)To help the DRP series lift pump perform to its top potential FASS has designed an optional pump relocation kit that will move the lift pump closer to the fuel tank, reducing the distance the lift pump needs to pull fuel from and instead places fuel under pressure to push diesel to the engine. This is beneficial because all diesel lift pumps perform better as Pusher pump and when under pressure the motor doesn't need to work as hard to supply the fuel demanded by the injection system. Sold separately, see related items below.
- Preset @ 12-18 PSI
- Includes Installation Components
- Replacement For Factory Pump
- Large, Powerful Motor
- Easy Installation
This pump flows around 95 GPH.
FASS designed this pump to be used as a stock replacement in stock horsepower applications.
Trucks with retrofitted in-tank lift pump will also need Fuel Sump Kit or Suction Tube to supply fuel to DRP Lift Pump.
