OPTIONS: (AFTERMARKET UPPER CONTROL ARMS RECOMMENDED)

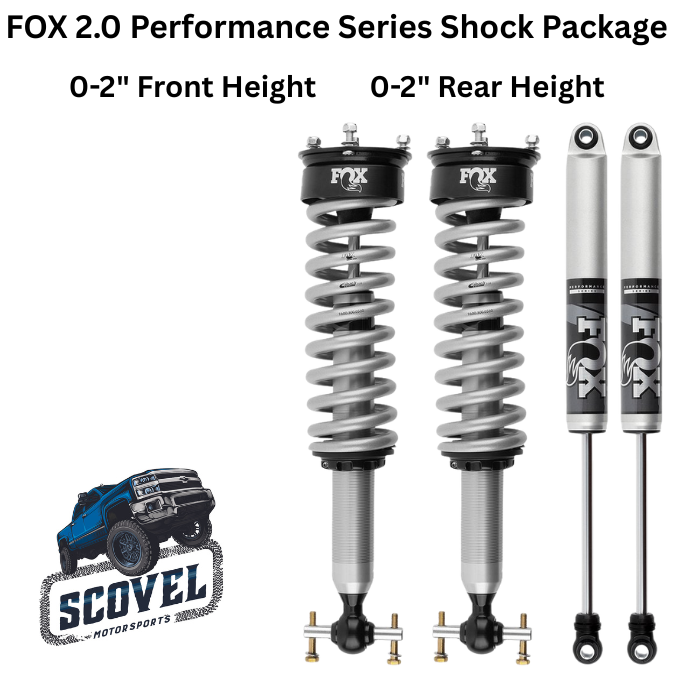

0-2" Front / 0-2" Rear will gain up to 2" up front on a non-at4 or zr2 truck , this kit is a no-height added kit for AT4/ZR2 models

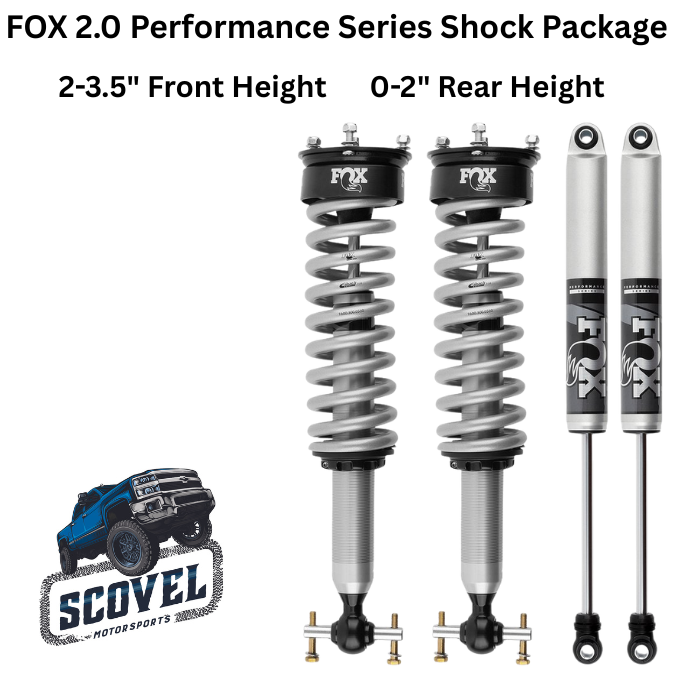

2-3.5" Front / 0-2" Rear will gain up to 3.5" up front on a non-at4 or zr2 truck , this kit is can add up to 1.5" up front for AT4/ZR2 models
Rear Shocks work with stock up to 2" rear lift blocks If you need taller than 2" rear, DM us for that part #
Front Shock height range dictated by how you adjust coil over adjustment collar
****************************************************************************************************************
Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
| SERIES | Performance |
| BODY | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| BEARINGS | Large diameter, heavy-duty spherical |
| TOP MOUNT | TM |
| BOTTOM MOUNT | Bar Pin |
