Overview

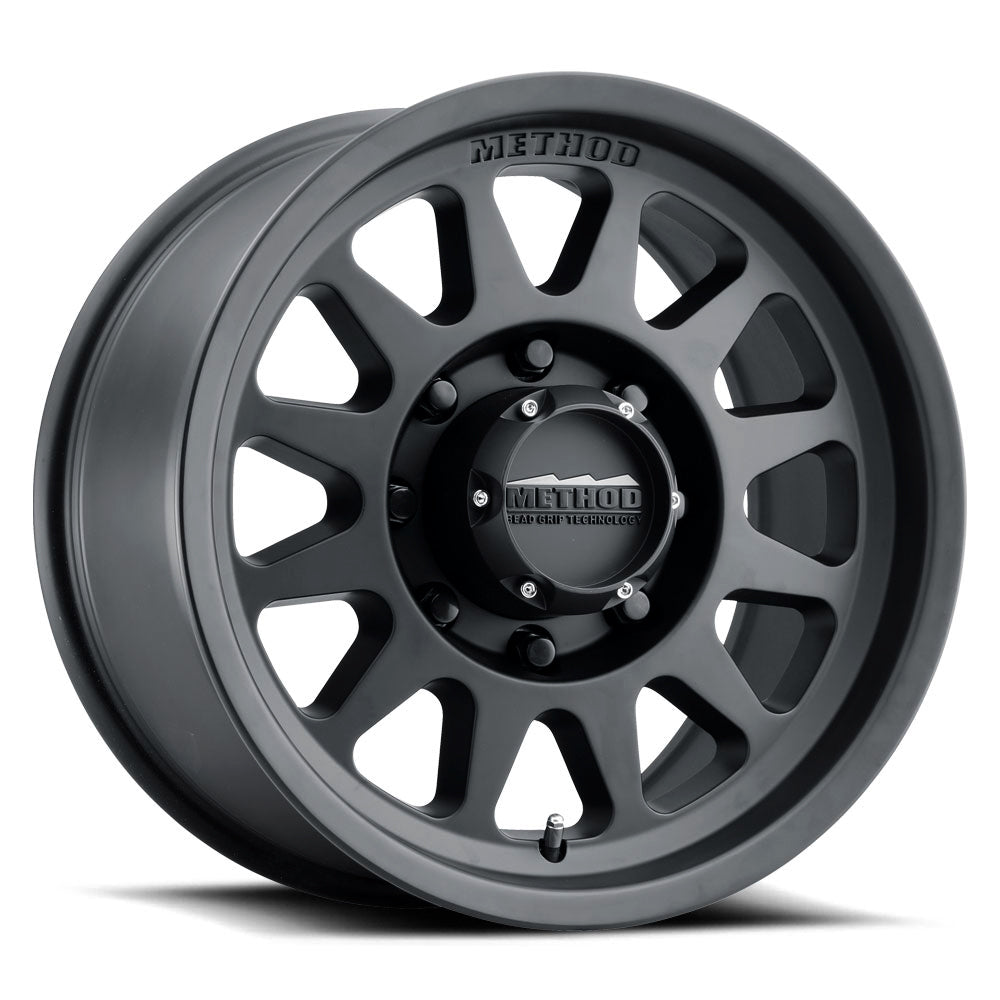

The 704 Bead Grip® wheel has a timeless 12 spoke design that will compliment any vehicle's style. Developed for off-road enthusiasts who are hauling a little extra with them, this Heavy Duty (HD) wheel boasts a load rating of 4,500 lbs. for maximum payload.
The Bead Grip Technology® allows deflation of tires down to pressures that previously would have required beadlock wheels to make sure tires didn’t debead. It’s advantageous to reduce tire inflation pressure while off-roading to increase a tire’s contact patch surface area for better traction on loose surfaces as well as improve ride comfort by effectively reducing the spring rate of the tire.
Specifications
- Part Number MR70479088518H
- Wheel Diameter (in) 17
- Wheel Width (in) 9
- Bolt Pattern 8x180
- Offset (mm) 18
- Hub Bore (mm) 130.81
- Back Spacing (in) 5.75
- Wheel Weight (lbs) 31.93
- Max Load (lbs) 4500
Details
- Patented Bead Grip Technology® engages tire bead for increased grip at low tire pressures
- Solid A356 aluminum with T6 heat treatment construction
- Legendary 12 spoke design with debossed METHOD logo
- Aggressive safety hump on bead seats further prevents debeading
- Reinforced inner lip taken from MRW race wheel increases strength
- Push-through center cap with embossed METHOD Bead Grip Technology® logo
- Industry’s best lifetime structural warranty
- Heavy Duty (HD) 4500 lbs. load rating for maximum payload
