ZONE OFFROAD 5" TORSION BAR DROP LIFT KIT (2020-2025+ GM 2500/3500HD)
ZONE OFFROAD 5" TORSION BAR DROP LIFT KIT (2020-2025+ GM 2500/3500HD)
ZONE OFFROAD 5" TORSION BAR DROP LIFT KIT (2020-2025+ GM 2500/3500HD)
  • Load image into Gallery viewer, ZONE OFFROAD 5" TORSION BAR DROP LIFT KIT (2020-2025+ GM 2500/3500HD)
  • Load image into Gallery viewer, ZONE OFFROAD 5" TORSION BAR DROP LIFT KIT (2020-2025+ GM 2500/3500HD)
  • Load image into Gallery viewer, ZONE OFFROAD 5" TORSION BAR DROP LIFT KIT (2020-2025+ GM 2500/3500HD)

ZONE OFFROAD 5" TORSION BAR DROP LIFT KIT (2020-2025+ GM 2500/3500HD)

Regular price
$1,611.70
Sale price
$1,611.70
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

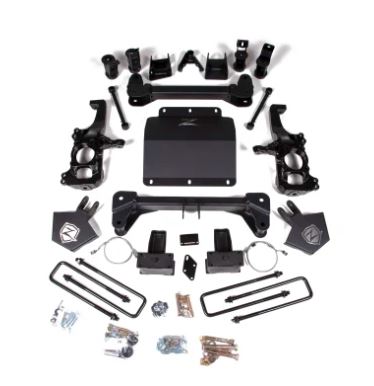

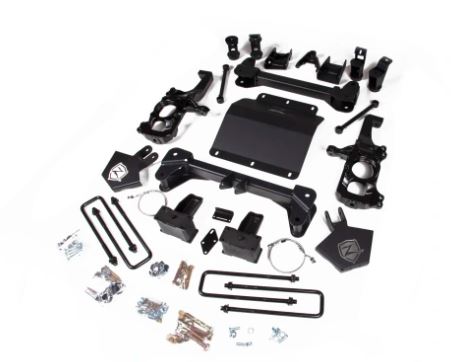

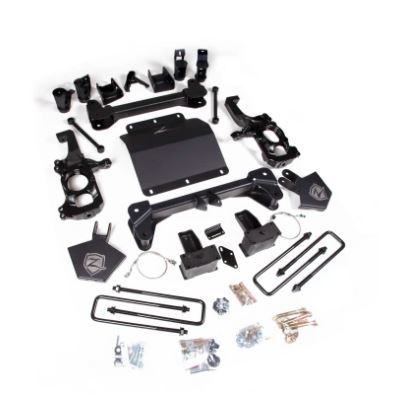

Take your 2020+ GMC/Chevy 2500/3500HD to new heights with this 5" lift kit from Zone Off road. Kits include everything needed from high strength crossmembers and steering knuckles to differential relocation and and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

QUICK SPECS


37 x 12.5
MAX TIRE SIZE
5"
FRONT LIFT HEIGHT
4.5"
REAR LIFT HEIGHT
6-8 hrs
INSTALLATION TIME

OVERVIEW

Front Lift Height 5"
Rear Lift Height 4.5"
Material 1/4" Steel
Front Lift Method Knuckle & Drop Cross-Member
Rear Lift Method Block Kit
Lift Type Suspension
Wheel Size 20 x 9
Back Spacing 5-5.5"
Max Tire Size 37 x 12.5
Wheel Size 2 20 x 10
Back Spacing 2 5-5.5"
Max Tire Size 2 35 x 12.5
Wheel Size 3 17 x 9
Back Spacing 3 4.5-4.625"
Max Tire Size 3 35 x 12.5
Finish Powdercoat
Cutting Required Yes
FMVSS Certification N/A (See notes)
Accommodates Factory Wheels See Notes
  • Brake Lines
  • Differential Relocation Brackets
  • Frame Crossmembers - Front and Rear
  • Lift Blocks - Rear
  • Skid Plate
  • Steering Knuckles
  • Sway Bar Relocation Brackets
  • Torsion Bar Crossmember Drop

FEATURES

  • Maintains ride quality and handling characteristics
  • Improves ground clearance while correcting suspension-steering-driveline geometry
  • High strength 1/4" thick steel crossmembers and differential skid plates
  • CNC machined ductile iron steering knuckles to maintain ESC System compatibility
  • Zone Offroad branded front skidplate and torsion bar relocation brackets
  • Allows clearance for up to 37" tires to be installed

ALL IN THE DETAILS

  • Compatible with gas and diesel models as well as standard and AT4 equipped models.
  • Frame bracket modifications required for installation.
  • Not compatible with top mounted overload equipped rear leaf springs, will require custom U-bolts.
  • Stock 17-18" wheels cannot be reinstalled, stock 20" wheels can be reinstalled.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.


SPECIFICATIONS

Install Time Hours 6-8 hrs
Difficulty Level 4 out of 5

  • 2020 Chevrolet Silverado 2500 HD
  • 2020 Chevrolet Silverado 3500 HD
  • 2020 GMC Sierra 2500 HD
  • 2020 GMC Sierra 2500 HD Denali
  • 2020 GMC Sierra 3500 HD
  • 2020 GMC Sierra 3500 HD Denali
  • 2021 Chevrolet Silverado 2500 HD
  • 2021 Chevrolet Silverado 3500 HD
  • 2021 GMC Sierra 2500 HD
  • 2021 GMC Sierra 2500 HD Denali
  • 2021 GMC Sierra 3500 HD
  • 2021 GMC Sierra 3500 HD Denali
  • 2022 Chevrolet Silverado 2500 HD
  • 2022 Chevrolet Silverado 3500 HD
  • 2022 GMC Sierra 2500 HD
  • 2022 GMC Sierra 2500 HD Denali
  • 2022 GMC Sierra 3500 HD
  • 2022 GMC Sierra 3500 HD Denali
  • 2023 Chevrolet Silverado 2500 HD
  • 2023 Chevrolet Silverado 3500 HD
  • 2023 GMC Sierra 2500 HD
  • 2023 GMC Sierra 3500 HD
